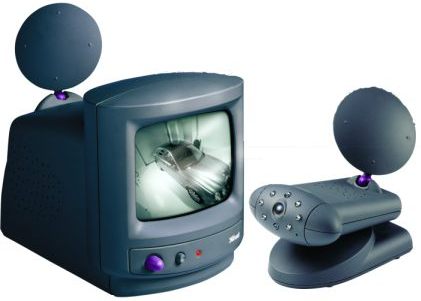

IH8115 - B/W OBSERVATION SYSTEM
Features
  • Complete set, ready to use. No wires or other products needed
  • Ideal for home and business security, child or garage monitoring
  • View the results directly on the monitor and/or record it on your VCR
  • One-way intercom through built in microphone
  • Camera and monitor can be both mains and battery powered
Use & Applications

Easily secure your business with the wireless security camera systems!
Place cameras at important locations in your building, such as the entrances, warehouse, the cash register, the safe, ...
View the images on the included monitor.

Extending the wireless security system

If you have several black / white or colour cameras and/or receivers available, you can extend your wireless system. The condition for this to function well is that the additional cameras and/or receivers to be connected operate on the same frequency (signal).
The number of receivers can be extended unrestrictedly within the system.
The number of cameras that can be connected in addition is three (so four in total).
The monitor with built-in receiver is equipped with the auto-sequence function. This means that the receiver can switch automatically among channels and thus also among cameras. This makes it possible to secure several locations simultaneously.
The interval between switching channels can be set on the receiver ( 4 sec. of 8 sec.)
If you do not want to use the auto-sequence function, select only the channel you want to receive at the moment you choose.

Technical information

Specifications
  • Wireless b/w observation camera system
  • Supports PAL video standards
  • 1/4" CMOS sensor
  • 2.4 - 2.485 GHz frequency range
  • Composite video output : Yes, Composite, rear of monitor
  • Other output : Yes, audio Cinch mono, rear of monitor
  • Resolution: ... x ... : EIA: 320 (H) x 240 (V) CCIR: 352 (H) x 288(V)
  • Maximum working distance of 100 metres in open field
  • Adjustable antenna for best performance
  • Four wireless channels available for best quality selection
  • Eight infrared LED's for night view
  • Monitor/receiver can handle up to 4 cameras at the same time (auto switching)
  • Built-in microphone
  • Extra video and audio signal outputs for VCR or other monitor
  • Product size camera (HxWxD): 90 x 105 x 135 (with antenna H = 185)
  • Product size monitor (HxWxD): 170 x 160 x 205 (with antenna H = 215)
  • Gross weight: 3,4 kg
Package contents
  • Monitor 5.5" b/w
  • Wireless Camera b/w with night vision
  • Power Supply for monitor and camera
  • Multi language user's manual
System requirements
  • Wall outlet for 220-240VAC or 10 C-sizebatteries for TV
  • Wall outlet for 220-240VAC or 8 AA batteries for camera
  • Batteries not included
